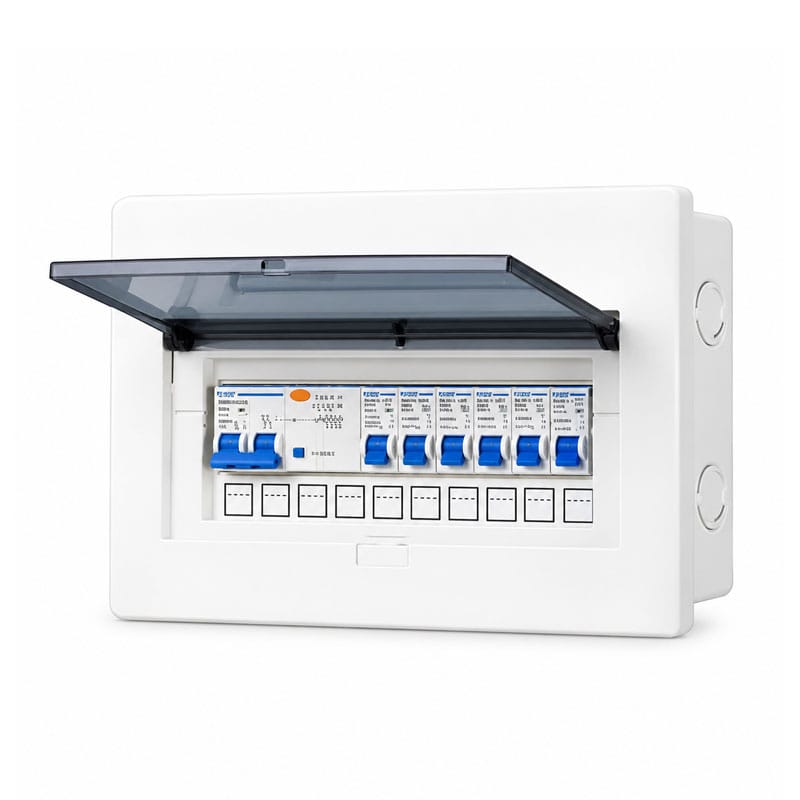

The PZ30 distribution box is a modular terminal assembly unit widely used in various types of buildings; it is primarily employed at the end of circuits for the control, protection, and metering of electrical equipment and is suitable for power networks with an AC frequency of 50–60 Hz and a rated operating voltage of up to 660 V.
| Model | Piece/Item | Panel Size | Recessed Enclosure Dimensions | Surface-mounted Enclosure Dimensions |
| 6 circuits | 20 | 198×227 | 177*200*86 | 177*200*86 |
| 8 circuits | 10 | 234×225 | 213*200*86 | 213*200*92 |
| 10 circuits | 20 | 287×287 | 249*251*86 | 248*251*92 |
| 12 circuits | 10 | 325×287 | 285*251*86 | 284*251*92 |
| 15 circuits | 10 | 382×287 | 239*251*86 | 338*251*92 |
| 18 circuits | 10 | 437×287 | 393*251*86 | 392*251*92 |
| 20 circuits | 10 | 472×287 | 429*251*86 | 428*251*92 |
| 24-circuit single-row | 10 | 545×287 | 501*251*86 | 500*251*92 |
| 24-circuit, double-row | 10 | 325×455 | 285*414*91 | 284*421*92 |
| 30-circuit dual-row | 5 | 382×455 | 339*414*91 | 338*421*92 |
| 36-circuit double-row | 5 | 437×455 | 393*414*91 | 392*421*92 |
| 40-circuit double-row | 5 | 472×455 | 429*414*91 | 428*421*92 |
| 45-circuit, three-row | 5 | 382×625 | 339*584*91 | 338*591*92 |
| 48-circuit, double-row | 5 | 545×455 | 501*414*91 | 500*421*92 |
| 54-circuit, three-row | 4 | 437×625 | 393*584*91 | 392*591*92 |
| 60-circuit, three-row | 5 | 472×625 | 429*584*91 | 428*591*92 |
| 72-circuit, three-row | 4 | 545×62 | 501*584*91 | 500*591*92 |
